Dev Equipments · Equipment & Parts
Equipment sales, spare parts and servicing for excavators, rock breakers and self-loading concrete mixers.
Equipment in focus
Explore Fine excavators, SLCM parts and the components behind your equipment.

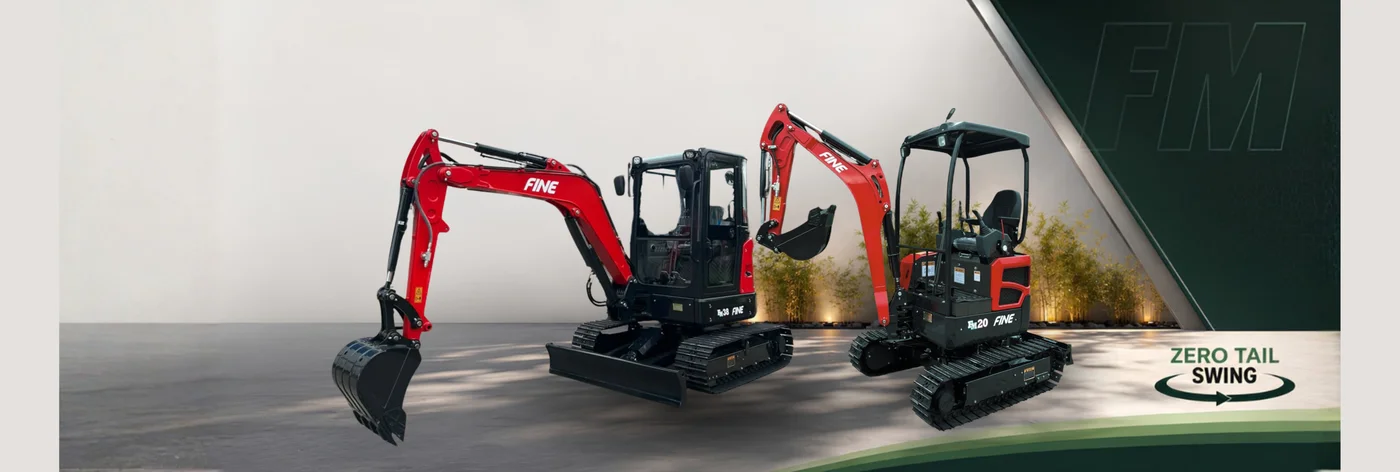

Compact excavators from Fine Equipments’ product range.
Photo: Fine Equipments ↗Parts sales and service for AJAX, SCHWING Stetter and CONMAT self-loading concrete mixers. Share your machine model and required part with our team.
Speak to sales & parts ↗Parts & attachments

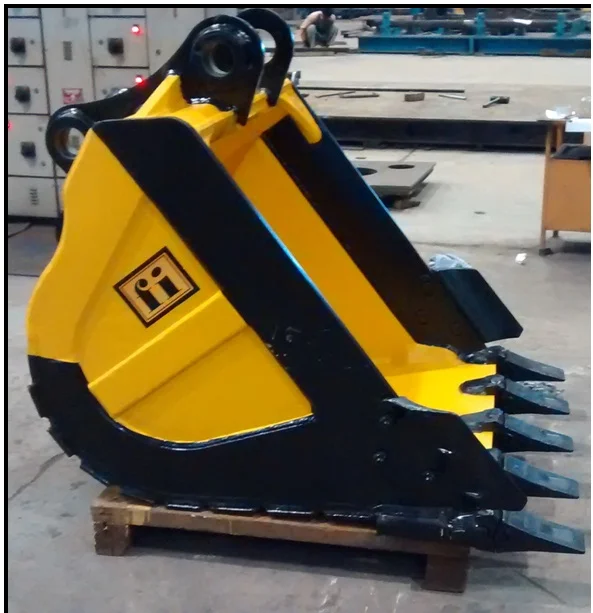

Bucket assemblies and their ground-engaging teeth.
Photo: Fine Equipments ↗

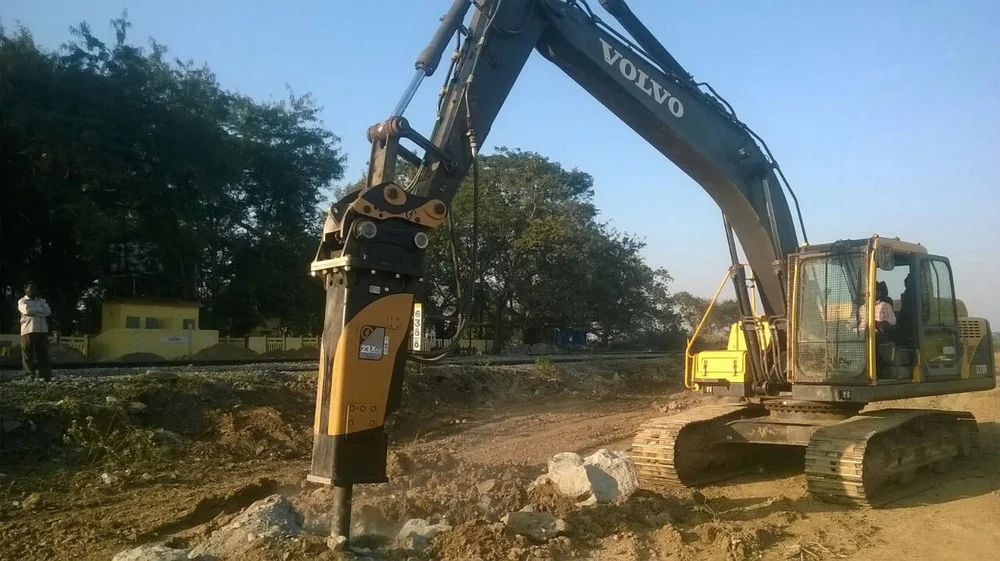

A quick coupler and hydraulic breaker fitted to an excavator.
Photo: Fine Equipments ↗

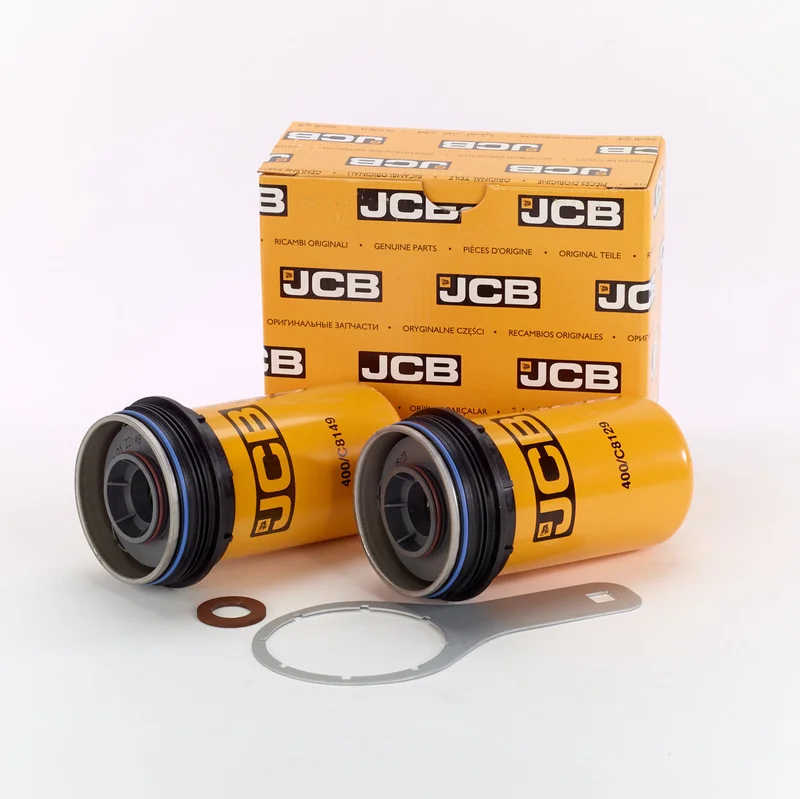

Filter components shown as a maintenance-parts reference.
Photo: Watling JCB ↗Photos show reference equipment and parts. Contact our sales team to confirm the make, model, compatibility and availability you need.

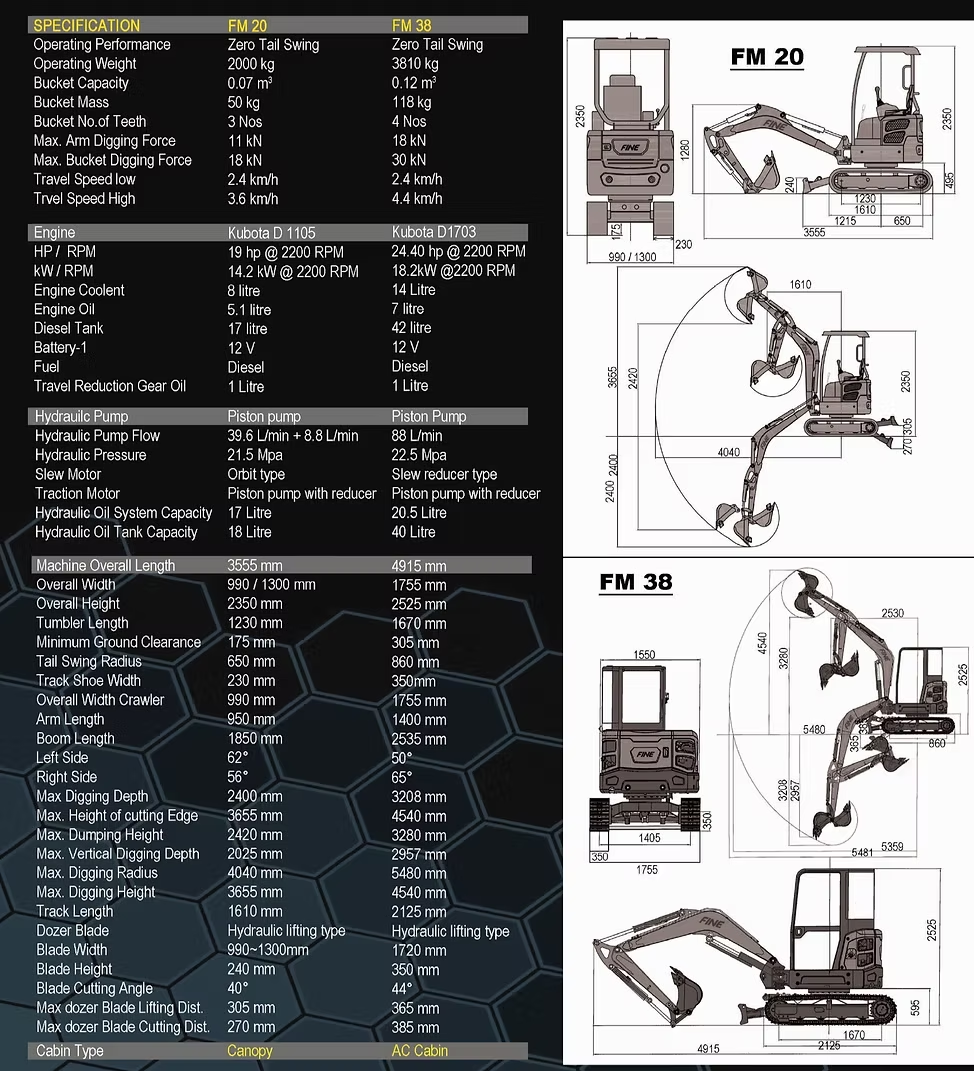

Fine Equipments / Mini excavators
Compare operating performance, engines, hydraulics and working dimensions from the supplied Fine specification sheet.
0.07 m³ bucket · Canopy
0.12 m³ bucket · AC cabin
| Specification | FM 20 | FM 38 |
|---|---|---|
| Operating performance | Zero tail swing | Zero tail swing |
| Operating weight | 2,000 kg | 3,810 kg |
| Bucket capacity | 0.07 m³ | 0.12 m³ |
| Bucket mass | 50 kg | 118 kg |
| Bucket teeth | 3 | 4 |
| Maximum arm digging force | 11 kN | 18 kN |
| Maximum bucket digging force | 18 kN | 30 kN |
| Travel speed — low | 2.4 km/h | 2.4 km/h |
| Travel speed — high | 3.6 km/h | 4.4 km/h |
| Specification | FM 20 | FM 38 |
|---|---|---|
| Engine | Kubota D 1105 | Kubota D1703 |
| Power (hp / rpm) | 19 hp @ 2,200 rpm | 24.40 hp @ 2,200 rpm |
| Power (kW / rpm) | 14.2 kW @ 2,200 rpm | 18.2 kW @ 2,200 rpm |
| Engine coolant | 8 L | 14 L |
| Engine oil | 5.1 L | 7 L |
| Diesel tank | 17 L | 42 L |
| Battery | 12 V | 12 V |
| Fuel | Diesel | Diesel |
| Travel reduction gear oil | 1 L | 1 L |
| Specification | FM 20 | FM 38 |
|---|---|---|
| Hydraulic pump | Piston pump | Piston pump |
| Hydraulic pump flow | 39.6 L/min + 8.8 L/min | 88 L/min |
| Hydraulic pressure | 21.5 MPa | 22.5 MPa |
| Slew motor | Orbit type | Slew reducer type |
| Traction motor | Piston pump with reducer | Piston pump with reducer |
| Hydraulic oil system capacity | 17 L | 20.5 L |
| Hydraulic oil tank capacity | 18 L | 40 L |
| Specification | FM 20 | FM 38 |
|---|---|---|
| Overall length | 3,555 mm | 4,915 mm |
| Overall width | 990 / 1,300 mm | 1,755 mm |
| Overall height | 2,350 mm | 2,525 mm |
| Tumbler length | 1,230 mm | 1,670 mm |
| Minimum ground clearance | 175 mm | 305 mm |
| Tail swing radius | 650 mm | 860 mm |
| Track shoe width | 230 mm | 350 mm |
| Overall width — crawler | 990 mm | 1,755 mm |
| Arm length | 950 mm | 1,400 mm |
| Boom length | 1,850 mm | 2,535 mm |
| Left side swing | 62° | 50° |
| Right side swing | 56° | 65° |
| Maximum digging depth | 2,400 mm | 3,208 mm |
| Maximum height of cutting edge | 3,655 mm | 4,540 mm |
| Maximum dumping height | 2,420 mm | 3,280 mm |
| Maximum vertical digging depth | 2,025 mm | 2,957 mm |
| Maximum digging radius | 4,040 mm | 5,480 mm |
| Maximum digging height | 3,655 mm | 4,540 mm |
| Track length | 1,610 mm | 2,125 mm |
| Dozer blade | Hydraulic lifting type | Hydraulic lifting type |
| Blade width | 990–1,300 mm | 1,720 mm |
| Blade height | 240 mm | 350 mm |
| Blade cutting angle | 40° | 44° |
| Maximum dozer blade lifting distance | 305 mm | 365 mm |
| Maximum dozer blade cutting distance | 270 mm | 385 mm |
| Cabin type | Canopy | AC cabin |
Source: Fine specification sheet supplied by Dev Equipments. Values are reproduced as supplied; confirm specifications and model configuration with our team before selecting equipment.
01 / Excavators
We handle excavator equipment sales, spare parts and servicing. Contact our sales and parts team with your machine make, model and required component to discuss availability and suitability.
02 / Own manufacturing
Dev Equipments manufactures ED Breakers and provides rock breaker sales, service and spare parts. Talk to our team about your excavator, application and breaker requirements to identify a suitable option.

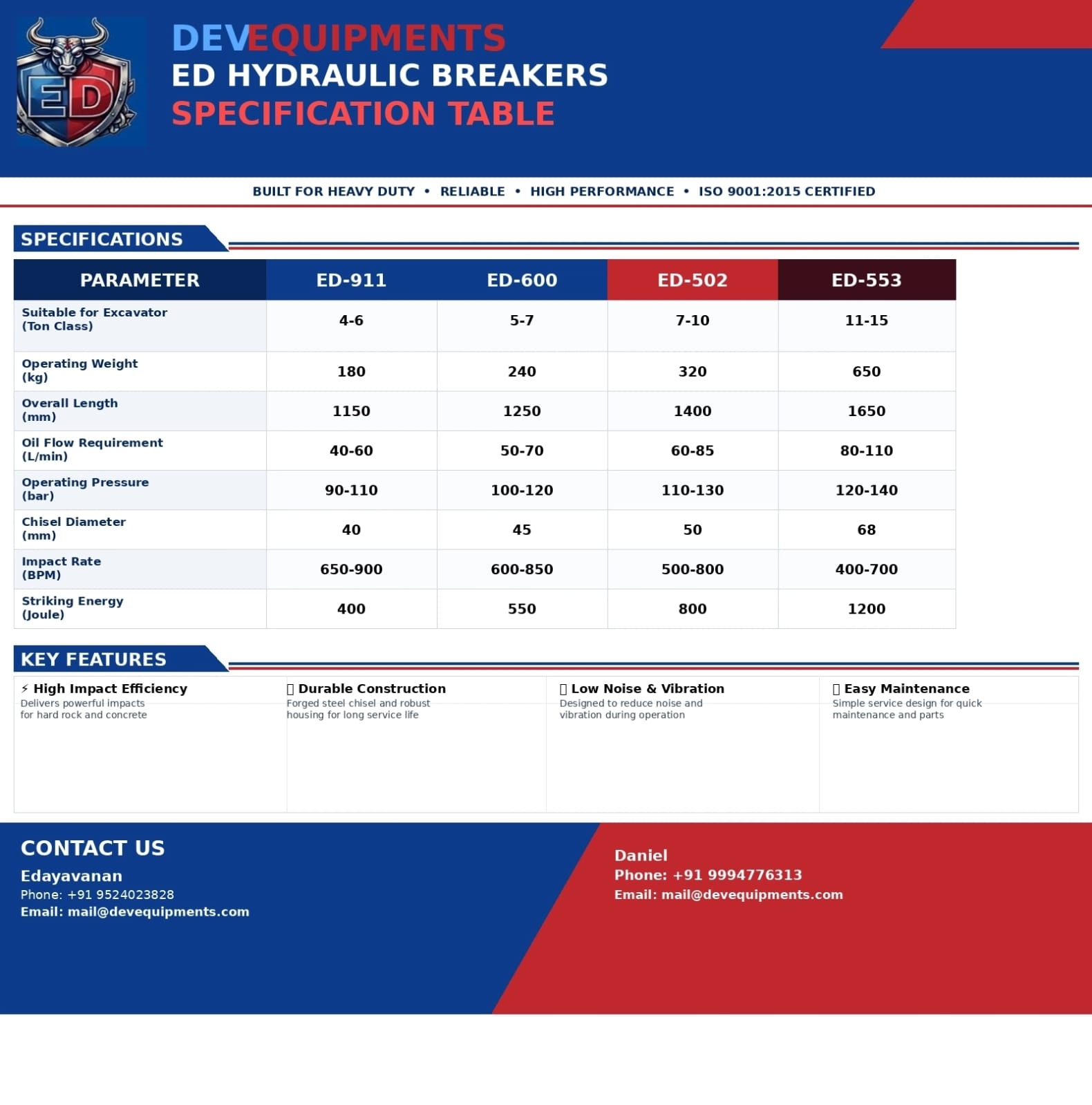

Dev Equipments / Own manufactured ED Breakers
Built for heavy duty, reliability and high performance. Compare four models using our supplied specification sheet.
ISO 9001:2015 certified
On mobile, swipe across the table to compare all four models.
| Parameter | ED-911 | ED-600 | ED-502 | ED-553 |
|---|---|---|---|---|
| Suitable excavator (ton class) | 4–6 | 5–7 | 7–10 | 11–15 |
| Operating weight (kg) | 180 | 240 | 320 | 650 |
| Overall length (mm) | 1150 | 1250 | 1400 | 1650 |
| Oil flow requirement (L/min) | 40–60 | 50–70 | 60–85 | 80–110 |
| Operating pressure (bar) | 90–110 | 100–120 | 110–130 | 120–140 |
| Chisel diameter (mm) | 40 | 45 | 50 | 68 |
| Impact rate (BPM) | 650–900 | 600–850 | 500–800 | 400–700 |
| Striking energy (J) | 400 | 550 | 800 | 1200 |
Powerful impacts for hard rock and concrete.
Forged steel chisel and robust housing for long service life.
Designed to reduce noise and vibration during operation.
Simple service design for quick maintenance and parts replacement.
Confirm excavator compatibility, hydraulic settings and current specifications with our team before selecting a breaker.
03 / Concrete mixers
Parts and service support for self-loading concrete mixers from AJAX, SCHWING Stetter and CONMAT. Share your machine model and part or repair requirement with the relevant team.
04 / Authorized dealership
Dev Equipments is an authorized dealer for Fine Equipments Private Limited. Contact our team to discuss available equipment and the support relevant to your requirements.
Contact our sales teamFine / Genuine parts & after-sales support
Fine builds high standards into its parts and tests them before they qualify as Fine Genuine Parts.
Counterfeit components can damage your rock breaker and cause breakdowns. Fine recommends purchasing genuine parts through its outlets to help protect your equipment.
For parts availability and compatibility, share your breaker model and required component with Dev Equipments.
Fine manufacturer enquiries: +91 77700 12613
Visit Fine Equipments ↗
Model specifications, compatibility and current parts availability are confirmed directly by our team.
Dealership opportunities
Dev Equipments offers dealership opportunities across all its products. Discuss your preferred products and location with our sales team.
Explore dealership opportunitiesFor equipment, parts or service — speak to our team.
